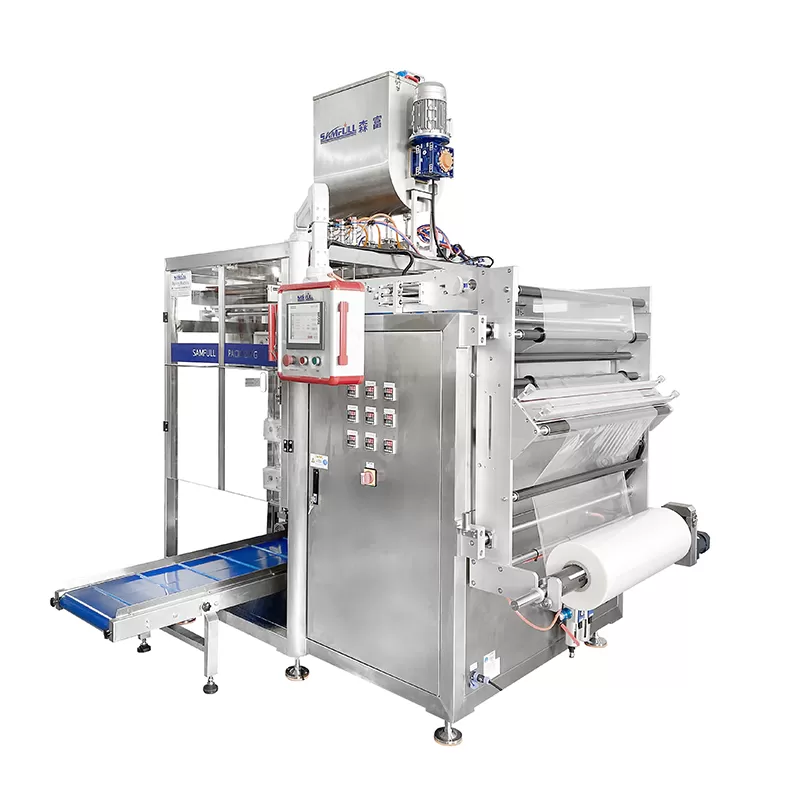

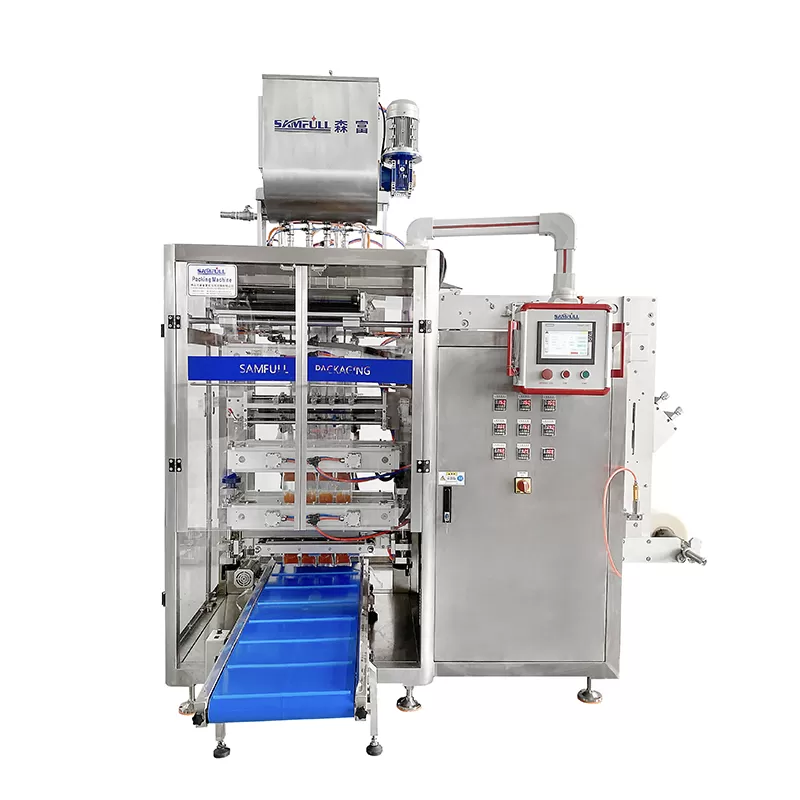

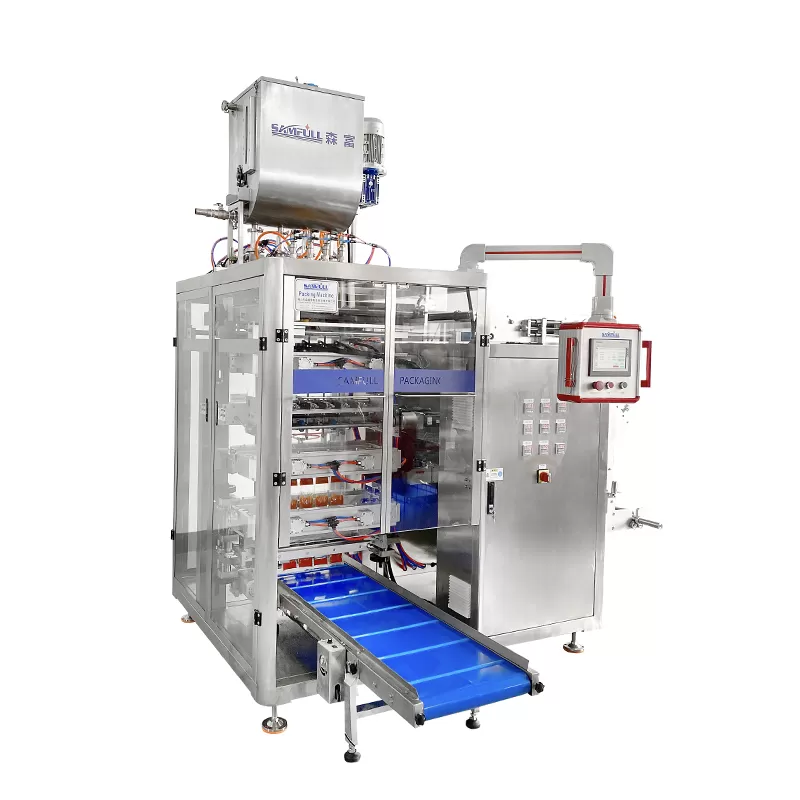

Liquid Packaging Machine
Technical details
| Capacity | 30-45 cycle/min ( Depend on the features of material ) |
| Stick bag length | Max.180mm |
| Stick bag width | Max.70mm |
| Filling method | 1. piston pump 2. ceramic pump 3. peristaltic pump |
| Weight range | 1-100ml |
| Film material | 1. Composite film 2. aluminium film |
| Cutting type |
|
APPLICATIONS
Capacity: Single lane for 30-45 bag/min, 4-12 lanes for 100-540 bag/min
Liquid Stick Pack Machine For:
Food industry: energy gel ( jelly ), beverage, ice candy, honey, edible oil, fruit jam, sauce, cream, juice, butter, yogurt, ketchup,
Chemical Industry: lubricant gel, mouth freshener, shampoo, detergent liquid
Pharmaceutical Industry: syrup, herbal, CBD oil
Cosmetic
Nutrients
As a manufacturer with 14 years of experience in packaging machine design and production, we have accumulated rich experience in both the food and non-food fields.
Just tell us your packaging requirements and we will provide you with the most suitable solution.
Whatsapp/Wechat/Phone: +86 19807574023
E-mail: service@samfull.com
BAG SAMPLES
VIDEOS
Standard liquid stick pack

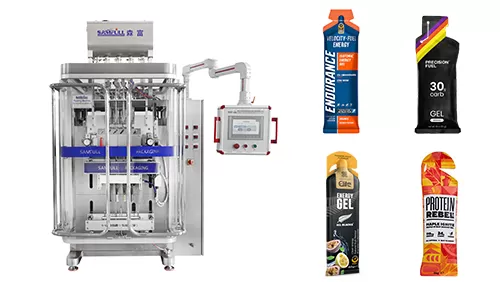

Irregular shape liquid stick pack

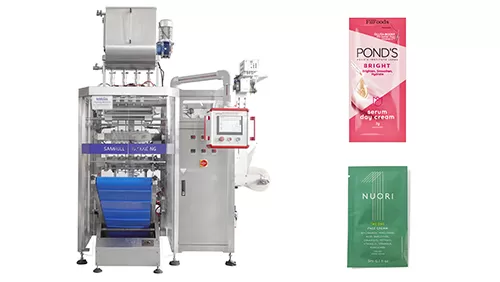

Four side seal sachet

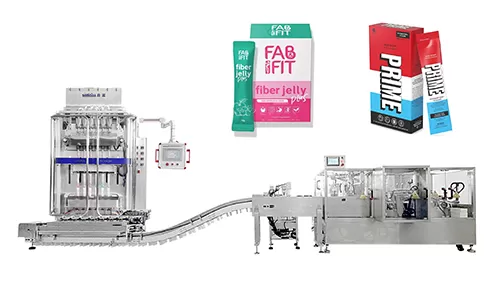

Stick bag box packing line
OPTIONAL DEVICES
1. Code printer: laser marking printer, thermal transfer printer, ribbon code printer, hot stamped coding machine
2. Cutting type: straight cut, zigzag cut, round cut
3. Dosing system: piston pump, ceramic pump, peristaltic pump
4. Easy open tear notch features
5. Variety of bag sealing patterns and bag shapes
6. Automatic counting and repackaging machine: box cartoning machine, vffs vertical form fill machine, premade pouch packing machine
7. Finished product conveyor
DESCRIPTION
Our Advantages
1. The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards:
2. Equipped with safety protection.in line with enterprise safety management requirements;
3. Electric components are general accessories for imported reliable brands. Siemens PLC control, touch screen control, automatic control capacability of the whole machine, high reliability and intelligence, high speed and high efficiency;
4. Independent temperature control system is adopted, and the temperature control is accurate, ensuring the sealing effect is beautiful and smooth:
5. The servo clamping film, film pulling system and color code control system can be automatically adjusted through the touch screen, and the operation ot sealing deviation correction and incision deviation correction is simple;
6. It can be packed 4-12 lines according to the width of the bag.The machine can be connected to the subsequent dosing line and the automatic secondary packing machine like cartoning machine, vffs machine and premade pouch packing machine, to achieve the fully automation production line.
Kety Features and Functions
1. Multiple Lanes: The machine consists of multiple lanes, typically ranging from four lanes to higher counts (e.g., ten lanes, six lanes, etc.), where each lane produces stick packs simultaneously.
2. Liquid Filling Stations: Each lane is equipped with liquid filling stations that accurately measure and dispense the liquid product into the stick packs. Precision is crucial to ensure consistent fill volumes.
3. Film Unwinding and Forming: The packaging film or foil is unwound from a roll and formed into stick pack tubes, ready to be filled with the liquid.
4. Sealing Mechanism: The machine seals the stick packs on both ends, creating a tamper-evident closure to protect the liquid product.
5. Film Material Compatibility: The machine is designed to work with packaging materials suitable for liquid products, ensuring proper sealing and preservation.
6. Pump or Gravity-Based Filling: Liquid products can be filled using pump systems or gravity-based mechanisms, depending on the viscosity and specific characteristics of the product.
7. Temperature Control: Our machines offer temperature control options to ensure the proper sealing of the stick packs, especially for heat-sealing methods.
8. Clean-In-Place (CIP) System: In some cases, machines may include CIP systems for easy cleaning and maintenance when switching between different liquid products.
9. Touchscreen Interface: Operators can use an intuitive interface to set up the machine, adjust parameters, and monitor the packaging process.
10. Integrated Sensors and Inspection: Sensors detect any irregularities in the filling or sealing process, allowing for quality control and rejection of defective stick packs.
11. Hygiene and Sanitation: Liquid packaging requires a focus on hygiene and sanitation, and some machines are designed with features to meet these requirements.
12. Output and Speed: Multi-lane stick pack machines are designed for high-speed production, suitable for large-scale manufacturing
