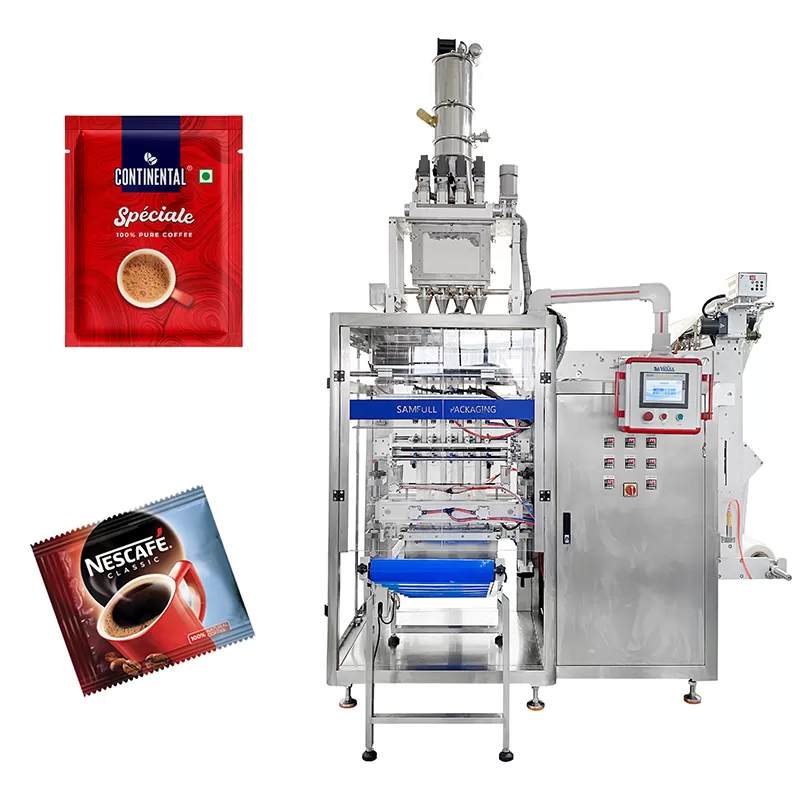

Coffee Sides Sealing Sachet Packaging Machine

Technical details

Capacity	25-45 cycle/min ( Depend on the features of material )
Sachet length	Max.180mm
Sachet width	Max.120mm
Filling method	1. servo auger filler 2. volumetric cup filler
Weight range	1-150ml
Film material	1. Composite film 2. aluminium film
Cutting type	1. straight cutting 2. zigzag cutting 3. continuous cutting

Inquire Now

APPLICATIONS

Powder Sachet Packing Machine For:

Food industry: coffee powder, milk powder, fruit drink powder, protein powder, supplements powder, seasoning powder, etc.

Non-food industry: pharmaceutical powder, cosmetics powder, chemical powder.

As a manufacturer with 14 years of experience in packaging machine design and production, we have accumulated rich experience in both the food and non-food fields.

Just tell us your packaging requirements and we will provide you with the most suitable solution.

Whatsapp/Wechat/Phone: +86 18138504633

E-mail: service@samfull.com

BAG SAMPLES

VIDEOS

Coffee powder four sides sealing sachet

OPTIONAL DEVICES

1. Code printer: laser marking printer, thermal transfer printer, ribbon code printer, hot stamped coding machine

2. Cutting type: straight cut, zigzag cut, continuous cut

3. Dosing system: long screw filler, short screw filler

4. Easy open tear notch features

5. Variety of bag sealing patterns and bag shapes

6. Automatic counting and repackaging machine: box cartoning machine, vffs vertical form fill machine, premade pouch packing machine

7. Finished product conveyor

8. Dust suction and removal device

DESCRIPTION

1. The equipment frame is made of 304 stainless steel, in line with food QS and pharmaceutical GMP hygiene standards:

2. Equipped with safety protection.in line with enterprise safety management requirements;

3. Electric components are general accessories for imported reliable brands. Siemens PLC control, touch screen control, automatic control capacability of the whole machine, high reliability and intelligence, high speed and high efficiency;

4. Independent temperature control system is adopted, and the temperature control is accurate, ensuring the sealing effect is beautiful and smooth:

5. The servo clamping film, film pulling system and color code control system can be automatically adjusted through the touch screen, and the operation ot sealing deviation correction and incision deviation correction is simple;

6. It can be packed 4-12 lines according to the width of the bag.The machine can be connected to the subsequent dosing line and the automatic secondary packing machine like cartoning machine, vffs machine and premade pouch packing machine, to achieve the fully automation production line.
